DECORATIVE

Home » Epoxy/Urethane Systems » Decorative

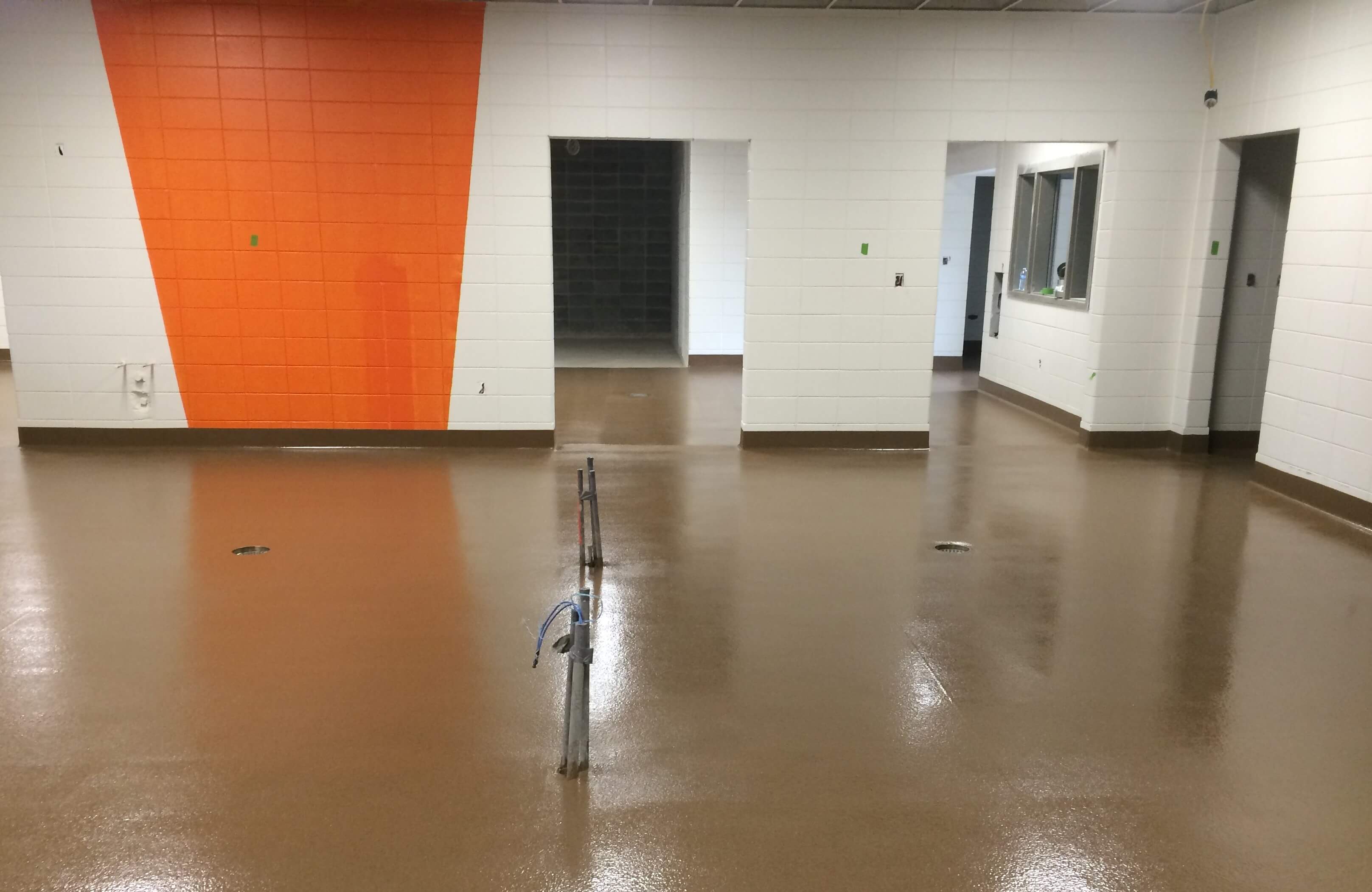

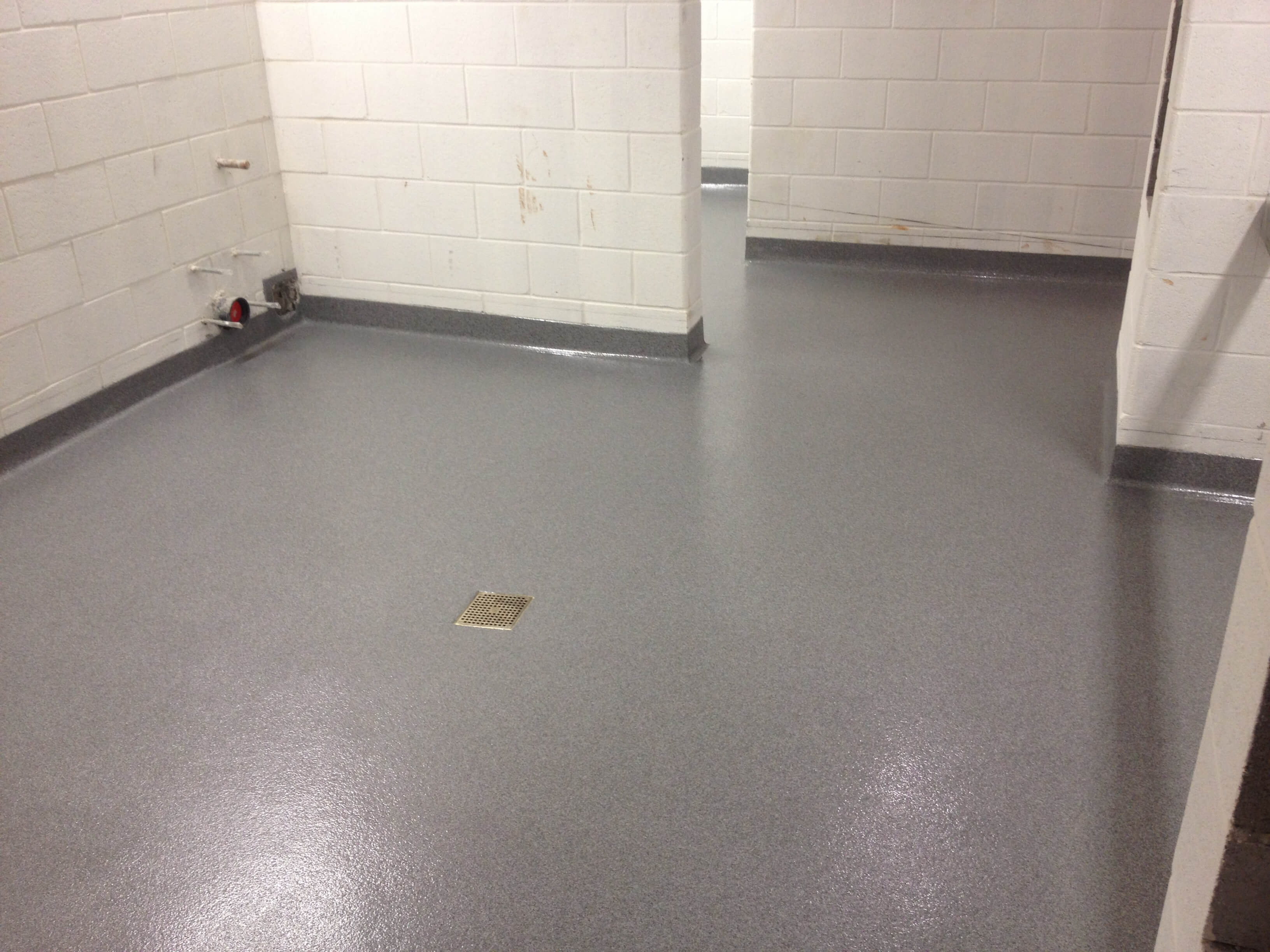

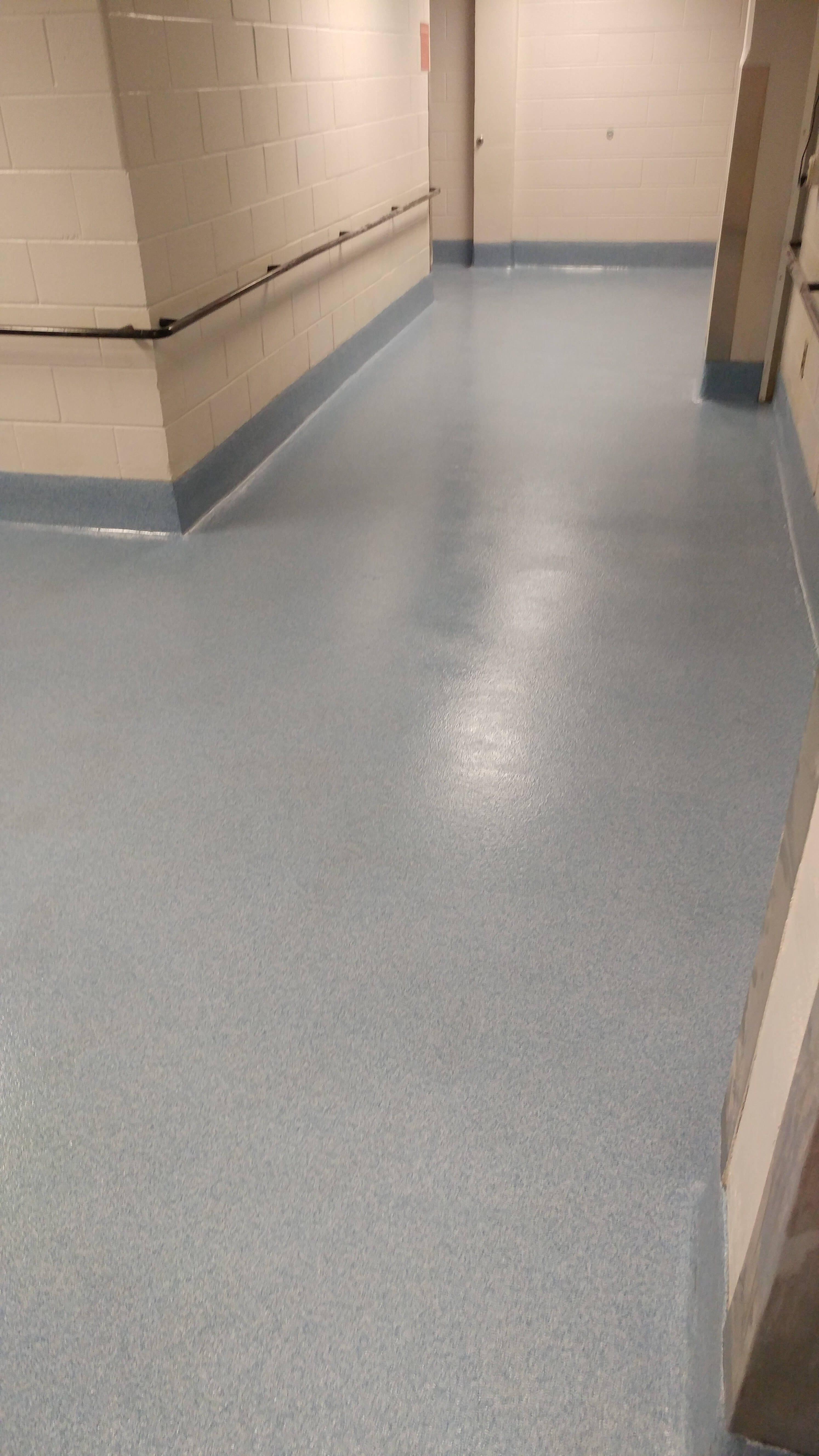

Quartz (Epoxy or Urethane) (~1/8”)







  •

Quartz Broadcast Systems are decorative floor systems, composed of multicolored quartz aggregates finished with transparent top coats. Quartz broadcast floors are a seamless, aesthetic, 125 mils (3 mm) thick, consisting of primer, binder(s) with quartz broadcast(s) and sealer. The system provides a durable, impermeable lightly-heavily textured, slip resistant finish with superior mechanical resistance. Various epoxy, polyaspartic and urethane topcoats are available to produce a range of slip resistant finishes depending on conditions of use. Basecoats can be altered to polyaspartics/ urethanes to match environmental needs as well accelerated schedules. Aggregate size can be increased for more slip resistance if needed.

Where to Use

  • Grocery stores.
  • Food packing rooms.
  • Commercial kitchens.
  • Department stores.
  • Factories.
  • Pharmaceutical laboratories and offices.
  • Hospitals, laboratories and health care facilities.
  • Museums and galleries.
  • Banks, office and government buildings.
  • Recreational facilities, change rooms and showers

Advantages

  • Durable, impermeable and seamless.
  • Superior mechanical resistance.
  • Good chemical resistance.
  • Provides a cleaner, safer and more sanitary work environment.
  • Low maintenance.
  • High density prevents dirt penetration, which provides easy cleaning.
  • Low odor / low VOC.
  • Optional) Integral cove, base and curbs
  • Available in various color patterns.

Heavy Duty Quartz (Epoxy or Urethane) (~3/16”-5/16”) (4.7 – 7.9 mm)





Heavy Duty Quartz System is a hybrid decorative system combing mortars and quartz broadcast. HD Quartz is a 3/16”-5/16” (4.3 – 7.9 mm) thick, two layer epoxy/urethane floor system. The first layer consists of a 1/8” (most common)-1/4” (3-6.3 mm) thick, trowel-applied heavy duty epoxy/urethane screed or SL urethane cement. Mortar is used to re-profile rough or deteriorated concrete surfaces, maximize performance in high traffic areas, or with urethanes increase thermal shock/cycling capabilities. The second layer is a broadcast and sealed epoxy/urethane floor composed of binder broadcast with multicolored quartz aggregates finished with transparent top coat(s) to produce a seamless and aesthetic finish. The system offers high compressive strength and accepts abuse from impact and heavy loading. Mortars and binders can be altered from epoxy to urethane to match environmental needs. Aggregate size can be increased for more slip resistance if needed. Optional Integral Cove Base.

Where to Use

  • Commercial food preparation areas
  • Hospitals and healthcare facilities
  • Pharmaceutical plants
  • Laboratories
  • Educational facilities
  • Substrate to rough for Quartz broadcast alone
  • Showers and locker rooms
  • Prisons and correctional facilities
  • Arenas and stadiums
  • Offices and government buildings

Advantages

  • Aesthetic Finish with wide array of color patterns
  • High Impact and abrasion resistance
  • Slip Resistance
  • Epoxy Mortar- Combination of Those under Quartz and Epoxy Mortar
  • Urethane Mortar- Thermal Shock & Cycling capabilities, MVT treatment, Combination of Those under Quartz and Urethane Cement

Flake (Epoxy or Urethane) (1/16”-1/8”) (1.6-3.2 mm)









Flake floors are a durable attractive floor finish which maintain an attractive finish even with age and high use. The multicolored pattern are often said to mimic a terrazzo finish at a more economical cost. Flake Broadcast are an aesthetic, easy to clean, seamless floor consisting of a primer, pigmented binder broadcast with multi-colored vinyl chips, and sealed with transparent, or UV stable topcoats. The multicolored flakes help conceal wear and micro abrasion extending the life cycle of the floor making them great choices for high traffic & high profile areas. The system is highly customizable with an extensive color palette and variable application thicknesses. Binders and topcoats can be altered to meet environmental needs. Final surface options include: integral cove base, and variable surface texture to produce a range of slip-resistant finishes.

Where to Use

  • Restaurant and cafeteria seating areas.
  • Commercial kitchen and food preparation areas.
  • Grocery, department and retail stores.
  • Light to medium duty production areas.
  • Pharmaceutical laboratories, production rooms and offices.
  • Restrooms and Locker-rooms
  • Hospitals, laboratories and health care facilities.
  • Museums and galleries.
  • Commercial lobbies and office areas.
  • Animal shelters and veterinary clinics.

Advantages

  • A seamless surface that is easy to clean and maintain.
  • Durable, impermeable and seamless.
  • High abrasion and impact resistance.
  • Good chemical resistance
  • Optional integral base and curbs can be installed without seams or joints.
  • Low odor / low VOC.
  • A highly customizable aesthetic multi-colored finish.
  • Variable surface texture to produce a range of slip-restraint finishes.
  • Available in various standard color blends

Heavy Duty Flake (Epoxy or Urethane) (~3/16”-5/16”) (4.7 – 7.9 mm)



Heavy Duty Flake Broadcast Systems are hybrid decorative systems combing mortars and flake broadcast to produce a seamless and aesthetic finish. HD Flake is a 3/16”-5/16” (4.3 – 7.9 mm) thick, two layer epoxy/urethane floor system. The first layer consists of a 1/8” (most common)-1/4” (3-6.3 mm) thick, trowel-applied heavy duty epoxy/urethane screed or SL urethane cement. Mortar is used to re-profile rough or deteriorated concrete surfaces, maximize performance in high traffic areas, or with urethanes increase thermal shock/cycling capabilities. The second layer is a broadcast and sealed epoxy/urethane floor, composed of binder broadcast with multi-colored vinyl chips finished with transparent top coats. The system offers high compressive strength and accepts abuse from impact and heavy loading. Mortars and binders can be altered from epoxy to urethane to match environmental needs. Optional Integral Cove Base and various surface textures to produce a range of slip resistant finishes.

Where to Use:

  • Pharmaceutical, biotech and research applications
  • Wet and dry process
  • Laboratories, clean rooms
  • Animal care and research
  • Fine chemical scale-up and production
  • Dairies, breweries, wineries, distilleries
  • Chemical process plants
  • Pulp and paper plants
  • Warehouses and storage areas
  • Substrate to rough for flake broadcast alone

Advantages

  • Aesthetic Finish with wide array of color patterns
  • High Impact and abrasion resistance
  • Epoxy Mortar- Those under Flake and Epoxy Mortar
  • Urethane Mortar- Thermal Shock & Cycling capabilities, MVT treatment, Those under flake and Urethane Cement

Stain & Seal (9-11 Mils)





Combining the traditional means of staining concrete with the high performance and incredible look of epoxy and urethane sealers we can provide customers a beautiful & economical floor finish. The acetone dyes penetrate deep into the surface of the concrete to deliver rich and vibrant color. The floor is then sealed with a clear epoxy and urethane sealer. The sealers highlight the individualistic character of the concrete revealed as the stain takes differently throughout the slab providing a modeled and unique look. The sheen and clarity of the epoxy and urethane sharpens the finish and provides a seamless surface that is easy to clean and maintain. The Urethane sealer provides increased abrasion and stain resistant finish along with excellent UV resistance and color retention. Floors can be highly customized through the use of staining with wide array of color options, and/or the inclusion of stencils, logos, patterns, or designs. Texture can be added to the urethane to increase antiskid properties and abrasion resistance.

Where to Use

  • Life science, pharmaceutical industries and health care industry
  • Education (e.g. Schools and Universities)
  • Leisure & Culture (e.g. Museums, Stadiums, Galleries)
  • Retail (e.g. Shopping Malls, Department Stores)
  • Front lobbies, showrooms, conference rooms, breakrooms, display areas…
  • Corridors, garage floors, banks, restaurants, light noncommercial kitchens, hotels and more…

Advantages

  • High aesthetic qualities, customized designs, wide range of colors
  • Low maintenance
  • Multi-dimensional color hues
  • Economical

Metallic Coatings (30-40 mils)







Metallic Coatings are the most decorative, artistic, individually creative designed epoxy systems available. Each floor has its own unique character and artistic look that others floors will not have. Customers, employees, and visitors will walk off these floors completely amazed and in awe of the distinctive one of a kind finish. These floors are highly customizable through finishing methods and a large variety of colors that can be combined to increase attractiveness and design. Metallic coatings are decorative self-smoothing flooring system based on a two part, low odor and low viscous, transparent epoxy resin and Metallic Powders. The metallic powders are special effect pigments composed of mica nano-particles coated with various organic and inorganic pigments to create pearlescent and iridescent effects. It is recommended to finish metallic coating with urethane sealers to protect from abrasion, UV light, and surface wear.

Where to Use

  • Life science, pharmaceutical industries and health care industry
  • Education (e.g. Schools and Universities)
  • Leisure & Culture (e.g. Museums, Stadiums, Galleries)
  • Retail (e.g. Shopping Malls, Department Stores)
  • Front lobbies, showrooms, conference rooms, breakrooms, display areas…
  • Corridors, garage floors, banks, restaurants, light noncommercial kitchens, hotels and more…

Advantages

  • High aesthetic qualities, customized designs, wide range of colors
  • Low maintenance
  • Multi-dimensional color hues
